MODEL
|

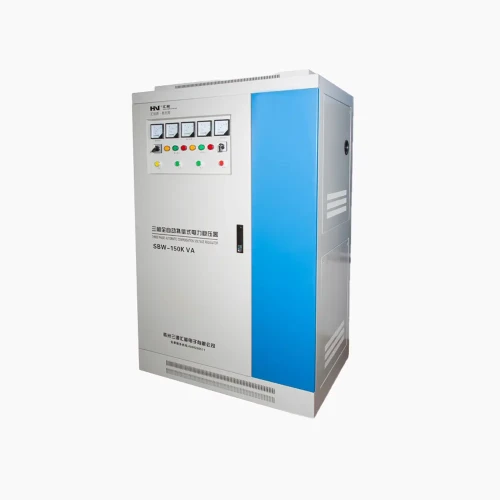

SBW(50kVA-200kVA)
|
|
INPUT VOLTAGE
|
175Vac-265\^c (phase voltage) 300Vac-456Vac(line voltage)
|
|
OUTPUT VOITAGE
|
Single phase: 220Vac Three phase:380Vac
|
|
DELAY TIME
|
Short Delay:3-5sec
|
|
PROTECTION
|
Over Voltage(246V±4V),Overioad,High Temperature,Short Circuit
|
|
POWER
|
50KVA/60KVA/100KVA/120KVA/150KVA/200KVA/250KVA/300KVA/320KVA/400KVA/500KVA/60K0VA/800KVA/1000KVA/1200KVA/1600KVA/2000KVA
|
|
FEATURE
|
The product of this model is cabinet type design,pointer display/digital display selection.lt is characterized high-precision output.Suitable for a wide range of load.can withstand instantaneous overload.Long-term continuous work can be carried out, manual/ automatic switching and the automatic protection for over voltage, phase loss, phase sequence and mechanical failure are provided
|
|
APPLICATION
|
It is widely used in various industries, small office equipment,refrigerator, electric fan, computer, pump, air conditioner and other household appliances.
|
|
Power Factor
|
≥0.9
|
≥0.9
|
≥0.9
|
≥0.9
|
|
Control
|
High precision servo motor
|
|
Digital display
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
show input and output voltage、Over\Low Voltage、Overload、delay、temperature
|
|
Temperature protection
|
yes
|
yes
|
yes
|
yes
|
|
Short circuit&over load
|
air-switch/（fuse：500-2000va）
|
air-switch/（fuse：500-2000va）
|
air-switch/（fuse：500-2000va）
|
air-switch/（fuse：500-2000va）
|
|
Cooling type
|
FAN/Vents
|
FAN/Vents
|
FAN/Vents
|
FAN/Vents
|
|
Efficiency
|
AC 97%
|
AC 97%
|
AC 97%
|
AC 97%
|
|
Temperature
|
20°~55℃
|
20°~55℃
|
20°~55℃
|
20°~55℃
|
|
Humidity
|
<90
|
<90
|
<90
|
<90
|
