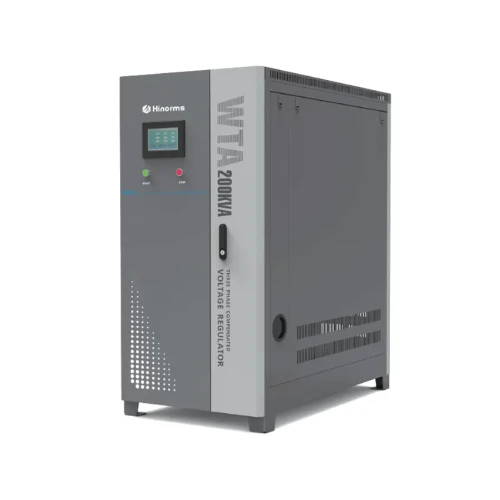

Hinorms TWA  50KVA - 250KVA Three Phase Automatic Voltage Regulators
Hinorms TWA  50KVA - 250KVA Three Phase Automatic Voltage Regulators
Hinorms TWA  50KVA - 250KVA Three Phase Automatic Voltage Regulators
Hinorms TWA  50KVA - 250KVA Three Phase Automatic Voltage Regulators

Hinorms TWA 50KVA - 250KVA Three Phase Automatic Voltage Regulators

Brand: Hinorms

Status: Up Comming

  • High-performance carbon brush
  • Stable compensated design
  • Longer lifespan
  • 6-layer safety protection
  • Industrial & commercial use
  • Intelligent full-power system
1

Model: WTA

TWA series (50kVA-250kVA
Technology Servo Motor Control+Toroidal Transformer, Efficiency≥98%
Input Voltage 304vac-456vac(line Voltage)
Output Voltage Three phase:380±2-4%Vac can be set 50/60Hz
Protection Over Voltage, Overload, High Temperature, Short Circuit(with fuse or circuit breaker)
Operating Temperature -20-50°C
Operating Relative Humidity 10%RH-102%RH: non condensing



  Packing Size(cm)  G.W(KGS)   QTY/40FT
WTA-50KVA  64x100.5x122 250 64
WTA-80KVA 64x105,6x128,8 255 64
WTA-100KVA 64x105.6x128.8 357 48
WTA-120KVA 64x105.6x128.8 482 48
WTA-150KVA 70x119.3x143.8 482 48
WTA-200KVA 70x119.3x143.8 562 48
WTA-250KVA 70x119.3x143.8 710 34

Description

PRODUCT FEATURES

This three-phase compensated motor voltage regulator features a uniquely developed high-performance carbon brush module, ensuring efficient heat dissipation, smooth operation, and a fast response. The compensated design enhances stability, as the carbon brush operates at lower temperatures and carries less current, which significantly extends the product’s lifespan. Six layers of safety protection ensure secure operation, enhancing durability and reliability.

APPLICATION

This high-power three-phase compensated voltage regulator is designed for industrial, Vilas and commercial settings. It is ideal for stabilizing voltage for large equipment or multiple devices.
