| Display Details |
Panel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1895.04 (H) X 1065.96 (V) (85.6")
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07G colors (8-bit + FRC)
Brightness: 450 nits
Contrast Ratio: 5000:1 (max. with DCR enabled)
Response Time: 8ms
Viewing Angles: H=178, V=178
Backlight Life: 50,000 Hours
Surface Treatment: Hardness: 9H Anti-glare coating
Orientation: Landscape |
| Platform |
Processor: Octa-core
RAM: 8GB DDR4
Storage: 128GB |
| Touch |
Type/ Tech: Ultra Fine Touch Technology
Touch Point: Windows: 40 Android: 40
Touch Response 5 |
| INPUT |
HDMI: x2 (Frontx1:HDMI2.0 with CEC ; Rearx1: [HDMI2.0 with CEC/ ARC)x1]
RGB / VGA: x1
Audio: x1
RS232: x1
SD/SDHC: x1
OPS: x1 (Optional Intel Standard OPS) |
| OUTPUT |
HDMI: x1
Audio: x1
SPDIF: x1 |
| LAN |
RJ45: x1 |
| USB |
Type A: USB3.2 Gen 1:Front x2 , Rear x2 (all support SmartPort)
USB2.0:Rear x1
Type B: USB 2.0:Frontx1, Rear x1
Type C: USB 2.0: Front x1 with PD15W |
| SPEAKERS |
15 x 2W+25W |
| Embedded OS |
Android 14 (EDLA) |
| Power |
Voltage: 100-240V AC
Consumption: On: 240W(Normal) ; Off: <0.5W |
| ERGONOMICS |

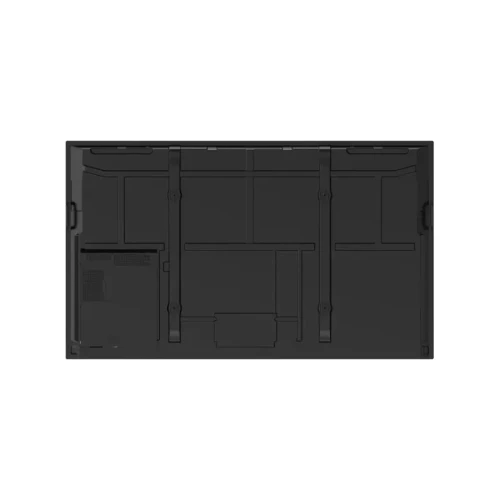

Wall Mount (VESA® ): 800*600 |
| OPERATING CONDITIONS |
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing |
| DIMENSIONS (W x H x D) |
Physical (inch / mm): 77.1x45.6x3.9(in) / 1957x1159x98.8 (mm)
Packaging (inch / mm): 83.1x50.8x7.3(in) / 2110x1291x185(mm) |
| WEIGHT |
Net (lb / kg): 118.2lb / 53.6 kg
Gross (lb / kg): 140.7lb / 63.8kg |
| REGULATIONS |
BIS, Energy Star |
| PACKAGE CONTENTS |
1. 3m power India power plug x 1 2. 3m HDMI cable x 1 3. 3m Touch USB cable (USB2.0) x 1 4. Touch pen x 2 5. Remote control x 1 6. AAA battery x 2 7.Wifi Dual band antenna*2 8. Quick Start Guide with Compliance statement 9. Screw x 4 (wall mount M8*25mm) |
| Compatible Slot-in PC |
VPCF5-W55-G1 / VPCF5-2A / VPC37-W53-G1 / VPC35-W53-G1 |
