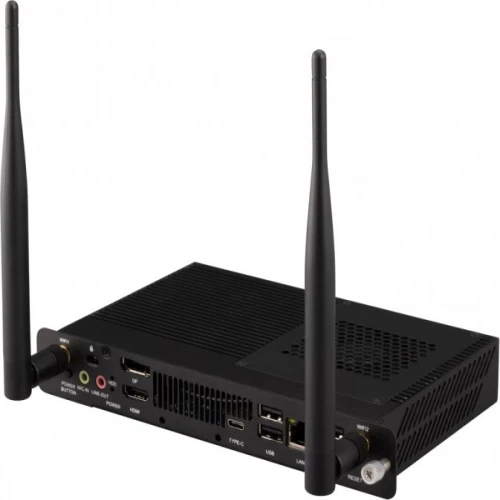

ViewSonic VPC25-W33-O1-1B Slot-in PC Module for Interactive Displays
ViewSonic VPC25-W33-O1-1B Slot-in PC Module for Interactive Displays

ViewSonic VPC25-W33-O1-1B Slot-in PC Module for Interactive Displays

Brand: Viewsonic

Status: In Stock

  • Capacity: 256GB SSD
  • Interface: M.2 2280 NVMe PCIe Gen3 SSD
  • CPU: Intel 10th Core Processors​
  • Graphics: Integrated Intel UHD graphic 630 Intel H510 chipset
1

Model: VPC25-W33-O1-1B

Specification

Basic Information
Processor Intel Core i5-10400T / 2.0GHz/Turbo boost 3.6GHz
RAM DDR4 (8x1 + 1 open slot)
Capacity: 8GB (up to 16GB)
Graphics Card Integrated Intel UHD graphic 630 Intel H510 chipset supports two screens output at the same time
Storage Dimension: M.2 2280 (22 x 80 mm)
Capacity: 256GB SSD
Interface: M.2 2280 NVMe PCIe Gen3 SSD
Power Supply Voltage: DC in +12V~+19V @ 3.42A
Consumption: 65 W (Typical)
Network & Wireless Connectivity RJ45: GbE LAN Port
Wireless / Bluetooth: Intel AX200 WiFi 6 + BT5.1 Module dual band
Operating System Windows 10 Pro 64 bit
Input Devices
External I/O Ports HDD/Power LED
LINE-OUT
MIC-IN
Power Button
HDMI
Type C
DP
USB 2.0
Reset
USB 3.2
LAN
Physical Details
Dimension 7.08” x 4.68” x 1.18”/ 180 x 119 x 30 mm
Warranty Information
Warranty 01-year

Description

ViewSonic VPC25-W33-O1-1B Slot-in PC for ViewBoard® Interactive Displays

Enhance your ViewBoard® interactive display experience with the ViewSonic VPC25-W33-O1-1B Slot-in PC, available at Orient Computers, your authorized ViewSonic partner in Bangladesh. This compact and powerful computing solution seamlessly integrates into compatible ViewBoard® displays, delivering robust performance and streamlined functionality for educational and business environments.​

Key Features:

  • Operating System: Windows 11 Pro (Windows 10 Pro Downgrade preinstalled)

  • Processor: Intel® Core™ i5-10400T (2.0GHz, up to 3.6GHz with Turbo Boost)

  • Memory: 8GB DDR4 RAM

  • Storage: 256GB M.2 NVMe PCIe Gen3 SSD

  • Graphics: Integrated Intel® UHD Graphics 630

  • Connectivity:

    • Wireless: Intel® WiFi 6 (802.11ax)

    • Bluetooth: Version 5.2

    • LAN: Gigabit Ethernet (RJ45)

  • I/O Ports:

    • USB: 4 x USB Type-A (1 x USB 3.2, 3 x USB 2.0), 1 x USB Type-C (data only)

    • Video Output: 1 x HDMI 1.4 (4096x2160@30Hz), 1 x DisplayPort 1.4 (4096x2160@60Hz)

    • Audio: 1 x Line-out, 1 x Mic-in

  • Software Bundle: Includes Adobe Reader, myViewBoard WhiteBoard, WatchDog (FinchGuard), and Winflash

  • Power Supply: DC input +12V~+19V @ 3.42A, typical consumption 65W

  • Operating Conditions:

    • Temperature: -5°C to 45°C

    • Humidity: 20% to 80% RH (non-condensing)

  • Dimensions: 202 x 119 x 30 mm (W x H x D)

  • Weight: Net: 1 kg; Gross: 1.2 kg​

Why Choose the VPC25-W33-O1-1B Slot-in PC?

Designed for seamless integration with ViewSonic ViewBoard® interactive displays, the VPC25-W33-O1-1B provides a clean and efficient solution without the need for external cables or devices. Its robust hardware ensures smooth operation for complex tasks, making it ideal for interactive classrooms, collaborative meetings, and dynamic presentations. With advanced connectivity options and pre-installed software tailored for interactive learning and collaboration, this slot-in PC enhances the functionality of your ViewBoard®, delivering a comprehensive and streamlined user experience.​SourceIT

Purchase with Confidence from Orient Computers

As the official ViewSonic partner in Bangladesh, Orient Computers guarantees genuine products with full warranty support. Invest in the ViewSonic VPC25-W33-O1-1B Slot-in PC to elevate your interactive display capabilities and ensure reliable performance in your educational or professional setting.
