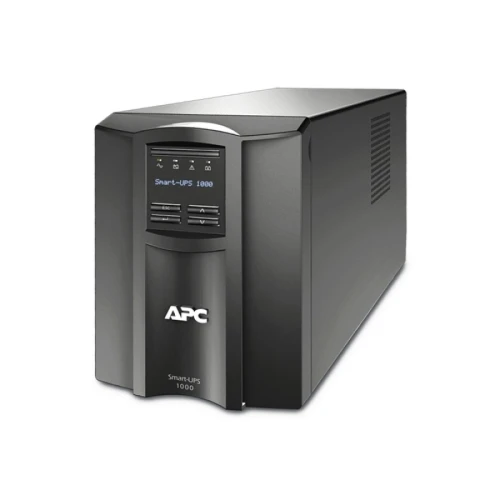

APC Smart 1000VA Online UPS – Compact Power Protection

The APC Smart 1000VA Online UPS is designed to provide reliable, continuous protection for your sensitive equipment. With its line-interactive topology and sine wave output, it is ideal for small businesses, home offices, or IT environments that require stable power without interruptions. This UPS ensures that your devices are safeguarded from power surges, sags, and outages, delivering clean, uninterrupted power at all times.

Key Features:

Output:

• Max Configurable Power: 700W / 1.0kVA, ensuring your equipment is powered effectively and safely.

• Output Voltage: Configurable for 220V, 230V, or 240V nominal output voltage.

• Output Voltage Distortion: Less than 5% at full load, maintaining high-quality power for your sensitive devices.

• Output Frequency (Sync to Mains):

  • 47 - 53 Hz for 50 Hz nominal sync to mains

  • 57 - 63 Hz for 60 Hz nominal sync to mains

• Waveform Type: Sine wave, which is ideal for ensuring compatibility with all types of connected devices.

• Topology: Line-interactive design for more efficient operation and better power protection.

Input:

• Input Frequency: 50/60 Hz ± 3 Hz, auto-sensing for flexibility with different power sources.

• Input Voltage Range for Main Operations: 151 - 302V (adjustable), ensuring stable operation even with fluctuating input power.

• Other Input Voltages: 220V, 240V, for compatibility with a wide range of electrical systems.

Batteries & Runtime:

• Battery Type: Lead-acid battery, providing dependable performance and longevity.

• Typical Recharge Time: 3 hours, allowing for quick recharging after a power outage.

• Replacement Battery: RBC6, a reliable replacement option.

• Expected Battery Life: 3 - 5 years, depending on usage conditions.

• Battery Charge Power: 88W, providing efficient charging without draining excessive power.

Communications & Management:

• Interface Ports: RJ-45 Serial, SmartSlot, and USB, enabling easy connection and monitoring.

• Control Panel: Multifunction LCD status and control console, providing a clear view of UPS status and performance.

• Audible Alarm: Distinctive low battery and overload continuous tone alarms for quick identification of issues.

• Emergency Power Off (EPO): Optional, for shutting down the UPS during emergency situations.

• SmartSlot™ Interface: 1 available slot for additional customization and expansion.

Surge Protection and Filtering:

• Surge Energy Rating: 459 Joules, providing protection from power surges and spikes.

• Filtering: Full-time multi-pole noise filtering with 0.3% IEEE surge let-through, ensuring minimal interference with the connected equipment.

• Zero Clamping Response Time: Meets UL 1449 standards for superior surge protection.

Physical Specifications:

• Dimensions:

  • Height: 219 mm (21.9 cm)

  • Width: 171 mm (17.1 cm)

  • Depth: 439 mm (43.9 cm)

• Weight:

  • Net Weight: 18.86 kg

  • Shipping Weight: 22.77 kg

• Shipping Dimensions:

  • Height: 376 mm (37.6 cm)

  • Width: 328 mm (32.8 cm)

  • Depth: 595 mm (59.5 cm)

• Color: Black

• Units per Pallet: 12

Environmental Conditions:

• Operating Temperature: 0 - 40°C

• Relative Humidity: 0 - 95% (Non-condensing)

• Operating Elevation: 0 - 3048 meters

• Storage Temperature: -15 - 45°C

• Storage Relative Humidity: 0 - 95% (Non-condensing)

• Storage Elevation: 0 - 15240 meters

• Audible Noise: 41.0 dBA at 1 meter, ensuring quiet operation.

• Thermal Dissipation: 100.0 BTU/hr, indicating low energy consumption and minimal heat output.

Conformance and Approvals:

• Certifications: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, ensuring adherence to global standards for safety and performance.

Sustainable Offer Status:

• RoHS Compliant: Ensures environmental friendliness and adherence to regulatory standards.

Warranty:

• 1 Year Warranty: APC guarantees the quality and reliability of the Smart 1000VA Online UPS with a one-year warranty for your peace of mind.

Why Choose the APC Smart 1000VA Online UPS?

• Efficient and Reliable Power: Offers high-quality sine wave output, line-interactive topology, and configurable voltage settings to ensure stable operation.

• Compact and Durable: The compact design makes it ideal for home offices or small businesses while providing reliable protection against power disturbances.

• Easy Management: The multifunction LCD console and multiple connectivity options ensure straightforward monitoring and management of the UPS.

• Protect Your Devices: With surge protection, noise filtering, and a strong battery backup, the APC Smart 1000VA UPS ensures that your critical equipment stays powered during interruptions.

The APC Smart 1000VA Online UPS provides dependable power protection with easy-to-manage features, perfect for protecting your devices and maintaining uptime in environments where power stability is crucial.
