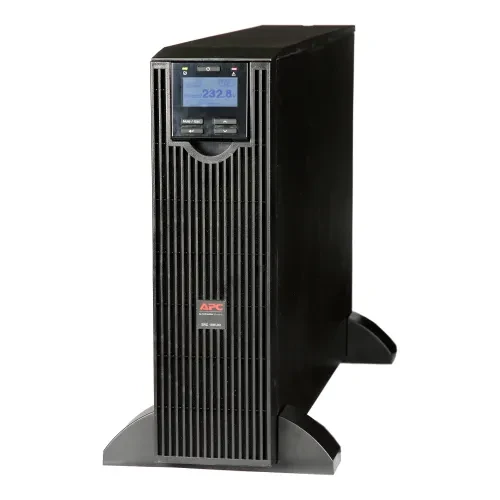

APC SRC10KUXI Smart-UPS RC 10KVA 230V Online UPS

Brand: APC

Status: In Stock

Features list

Power Output Capacity: 10KVA/ 9000W
Load power factor: 0.5 leading to 0.5 lagging
Output Connector Type: Hard wire 3-wire (H N + E) 1
Battery Type: External battery system

View More Information

Model: No Model

Add To Wishlist

Specification Description

Specification

Main Feature
Capacity	10000 VA
Display Type	LCD Display
Load Capacity	9000 W
Input Voltage	230 V
Output Voltage	Output frequency: 47...53 Hz for 50 Hz nominal sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised 50/60 Hz +/- 1 Hz sync to mains 50/60 Hz +/- 3 Hz sync to mains Wave type: Sine wave Output voltage tolerance: +/- 1% static and +/- 5% at 100% load step Output overload operation: 60 seconds at 125% and 30 seconds at 150% Output harmonic distortion: < 2% for 0 to 100% linear load and < 5% for full non-linear load Efficiency: 94.4 % (full load) 94.5 % (half load) Harmonic distortion: Less than 2 % Crest factor: 3 : 1
Noise Level	58 dBA
Battery	Battery type: External battery system
Others	Built-in static bypass Dust filter IP20 IP degree of protection
Input Features
Frequency	40...70 Hz auto-sensing
Power Factor	0.5 leading to 0.5 lagging
Voltage Range	160...285 V
Physical Specification
Dimension	Height: 57 cm Width: 79 cm Depth: 27.5 cm
Weight	32 kg
Manufacture Warranty
Warranty	1 Year

Description

The APC SRC10KUXI Smart-UPS RC 10KVA 230V Online UPS offers a reliable and high-performance solution for powering sensitive equipment. With a robust 10000 VA capacity and a 9000 W load capacity, it provides a dependable power supply, ensuring uninterrupted operation for a variety of applications.

Key Features:

LCD Display: Allows for easy monitoring and management of the power status.
Input Voltage Range: The UPS supports a wide input range from 160 V to 285 V, ensuring compatibility with various power conditions.
Frequency Auto-Sensing: The device automatically adjusts to input frequencies ranging from 40 Hz to 70 Hz.
Output Voltage: It provides a 230 V output with precise frequency control, offering 47 to 53 Hz for a 50 Hz nominal sync to mains, or ±1 Hz sync for more flexibility.
Efficiency: With an impressive 94.4% efficiency at full load and 94.5% at half load, the UPS ensures minimal energy waste and optimized performance.
Sine Wave Output: Despite handling fully non-linear loads, the APC SRC10KUXI maintains <2% harmonic distortion, ensuring a clean and stable power output.
External Battery System: Extends backup time, providing continuous power even during extended outages.
Static Bypass: Features a built-in static bypass to facilitate smooth transitions during power fluctuations, preventing disruptions.
Safety Features: Includes a dust filter and IP20 degree of protection, guarding the device against environmental damage.
Overload Protection: Protects the system under stress, supporting 125% load for 60 seconds and 150% load for 30 seconds, ensuring reliability during overload conditions.

The APC SRC10KUXI is an excellent choice for industries and environments where stable and efficient power is crucial, providing both performance and protection in a high-demand setting.
