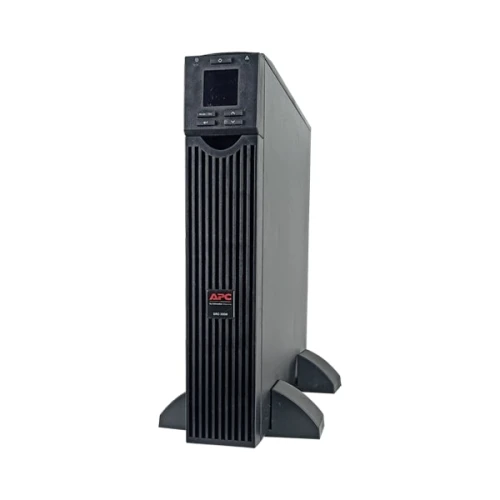

APC SRC3KUXI Smart 3000VA online UPS (No Battery)

Description

APC Smart 3000VA Online UPS – Reliable Power Protection

The APC Smart 3000VA Online UPS provides a high-quality, double-conversion online power solution for sensitive equipment, ensuring continuous protection from power disturbances. This UPS is designed to deliver stable, uninterrupted power to critical systems, ideal for servers, telecommunications, medical equipment, and industrial applications.

Key Features:

Output:

• Max Configurable Power: 2.7kW / 3.0kVA

• Output Voltage: Configurable for 220V, 230V, or 240V nominal output voltage, with a distortion of less than 2% for clean and stable power.

• Output Frequency (Sync to Mains): 50/60 Hz ± 3 Hz, synchronized to mains power.

• Waveform Type: Sine wave, ensuring compatibility with a wide range of devices.

• Bypass: Internal bypass (automatic and manual), allowing for continuous power delivery even during maintenance or faults.

Input:

• Battery Type: Lead-acid battery, known for its reliable performance and long lifespan.

• Nominal Battery Voltage: 96V, providing optimal battery management.

• Recharge Time: Typically recharges in 3 hours.

• Replacement Battery: APCRBC152.

• Battery Life Expectancy: 3 - 5 years, depending on usage.

• Extendable Run Time: The UPS can support extended runtime with additional battery modules.

Batteries & Runtime:

• Battery Charge Power: 168W, ensuring efficient battery charging without excessive power loss.

• RBC Quantity: 1 replacement battery cartridge.

Communications & Management:

• Interface Ports: RJ-45 Serial, Smart-Slot, and USB, offering versatile connectivity options.

• Control Panel: Multifunction LCD status and control console for easy monitoring and management.

• Audible Alarm: Audible and visible alarms, prioritized by severity, alert you to critical issues.

• Emergency Power Off (EPO): A safety feature that allows for quick shutdown during emergencies.

• SmartSlot™ Interface: 1 available for further customization.

Surge Protection and Filtering:

• Surge Energy Rating: 340 Joules, protecting your devices from power surges and electrical noise.

Physical Specifications:

• Dimensions:

  • Height: 432 mm (43.2 cm)

  • Width: 85 mm (8.5 cm)

  • Depth: 635 mm (63.5 cm)

• Weight:

  • Net Weight: 31.3 kg

  • Shipping Weight: 36.74 kg

• Shipping Dimensions:

  • Height: 246 mm (24.6 cm)

  • Width: 599 mm (59.9 cm)

  • Depth: 871 mm (87.1 cm)

• Color: Black

• Units per Pallet: 6

Environmental Conditions:

• Operating Temperature: 0 - 40°C

• Relative Humidity: 0 - 95% (Non-condensing)

• Operating Elevation: 0 - 3048 meters

• Storage Temperature: -15 - 45°C

• Storage Relative Humidity: 0 - 95% (Non-condensing)

• Storage Elevation: 0 - 15240 meters

• Audible Noise: 55.0 dBA at 1 meter

• Thermal Dissipation: 703.0 BTU/hr

• Protection Class: IP20, providing dust protection for internal components.

Conformance and Approvals:

• Certifications: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, ensuring compliance with international safety and performance standards.

Warranty:

• 1 Year Warranty: APC ensures the durability and reliability of the UPS, backed by a one-year warranty for peace of mind.

Why Choose the APC Smart 3000VA Online UPS?

• Reliable Protection: With double-conversion online topology, it offers continuous protection against power disturbances like surges, sags, and outages.

• Efficient Operation: The UPS provides stable, sine wave output with minimal distortion, ensuring the safety of connected equipment.

• Smart Management: The multifunction LCD and versatile connectivity options allow easy monitoring and management of the UPS, ensuring optimal performance.

• Environmental Safety: Designed to work in a wide range of environmental conditions, making it ideal for various applications from IT to industrial systems.

Ensure your equipment remains powered and protected with the APC Smart 3000VA Online UPS, delivering reliable performance and peace of mind.
