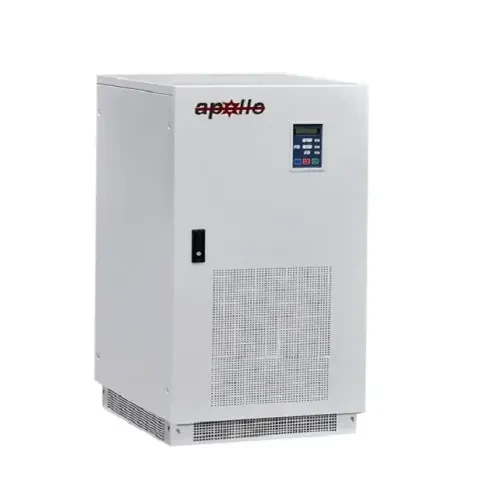

Apollo 2B15K-L 15KVA Long Backup Online UPS

Description

Apollo 2B15K-L 15KVA Long Backup Online UPS

The Apollo 2B15K-L 15KVA is a high-performance online uninterruptible power supply (UPS) designed to provide stable, continuous power and exceptional protection for critical applications. With its robust capacity and innovative features, this Apollo UPS ensures your systems remain up and running during power disruptions, making it ideal for businesses and industries that require reliable, long-duration backup power.

Key Features and Specifications:

Main Features:

• Capacity: 15KVA (13.5KW), capable of handling substantial power loads to protect sensitive equipment.

• Input Voltage Range: 380/400/415 Vac (±25% to +20%), offering compatibility with various power grid configurations.

• Output Voltage: 200/220/230 Vac (±1%), ensuring stable and precise voltage for connected equipment.

• Frequency Stability: 50/60Hz (±0.05%), providing high accuracy in maintaining frequency output.

• Battery: 384V DC battery system, designed to offer extended backup periods during power outages, ensuring continuous operation.

• Transfer Time: 0 ms, providing instantaneous switching from line mode to battery mode without any downtime.

Performance Features:

• Efficiency: >89% efficient, optimizing energy use while reducing operational costs and power waste.

• Harmonic Distortion: <3% for linear loads, reducing the risk of interference with sensitive electrical equipment.

• Crest Factor: 3:1, supporting delicate electronics and ensuring high-quality power delivery.

Display and Monitoring:

• LED and LCD Display: Real-time monitoring of critical parameters including input/output voltage, frequency, power factor, battery voltage, current, load percentage, UPS status, and historical data.

• Communication Interfaces: Equipped with RS232, RS485, and an optional SNMP card for easy integration into network environments, allowing remote monitoring and management.

Protection Features:

• Voltage Protection: Adjustable voltage protection range with an upper limit of +20% and a lower limit of -40%, ensuring stable operation despite fluctuating power conditions.

• Frequency Protection: Adjustable frequency protection from ±10% up to ±20%, further guaranteeing uninterrupted performance.

• Advanced Safety Mechanisms: The system includes overload protection, short circuit protection, high voltage protection, and battery protection for added reliability.

Battery and Efficiency:

• Battery Management: Smart battery management ensures longevity and efficient operation, maximizing the battery's lifespan while delivering sustained power when needed most.

Physical Specifications:

• Dimensions: 570 x 800 x 1195 mm, compact and sturdy design for space-conscious installations.

• Weight: 217 kg, ensuring a stable and robust unit that can handle significant loads.

• Operating Temperature: 0°C to 40°C, ensuring performance in a wide range of environmental conditions.

• Storage Temperature: -25°C to 55°C, making it suitable for diverse storage environments.

• Altitude: Designed to work efficiently in environments up to <1500m elevation.

Additional Features:

• Optional Accessories: Includes harmonic filter, SNMP adapter, battery temperature sensor, and bypass current-sharing inductor for enhanced functionality and adaptability.

• Compliance: Conforms to IEC/EN62040-1 and IEC/EN60950-1 safety standards, ensuring reliability and durability in mission-critical applications.

Manufacture Warranty:

• Warranty: 1 Year, providing assurance of performance and reliability for long-term use.

Why Choose the Apollo 2B15K-L 15KVA Long Backup Online UPS?

• High Capacity & Reliability: With a 15KVA capacity and over 89% efficiency, this UPS ensures continuous, reliable power to your most essential equipment.

• Real-Time Monitoring: The LED and LCD display provide instant visibility into critical metrics, allowing for proactive management.

• Advanced Protection: Features such as adjustable voltage and frequency protection, overload safety, and harmonic distortion minimization protect both the UPS and your connected systems.

• Flexible Integration: Multiple communication interfaces (RS232, RS485, and SNMP card) allow for easy network integration and remote monitoring.

• Durability and Compliance: Designed to operate in various temperature and storage conditions, and compliant with international safety standards, it offers long-term dependability for business-critical operations.

The Apollo 2B15K-L 15KVA Long Backup Online UPS is the ideal solution for businesses seeking a powerful, efficient, and durable UPS to protect critical systems from power interruptions and fluctuations.
