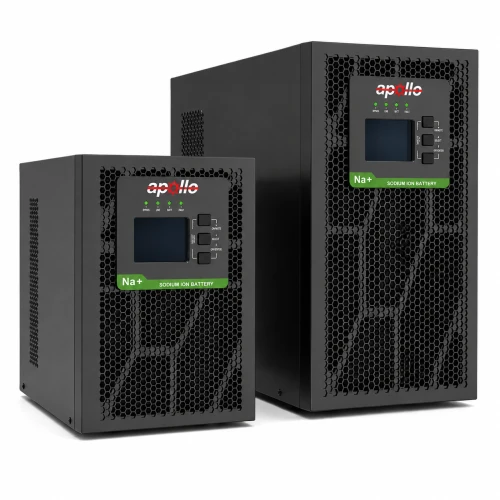

Apollo 3KVA Sodium Online UPS
Apollo 3KVA Sodium Online UPS

Apollo 3KVA Sodium Online UPS

Brand: Apollo

Status: In Stock

MRP: 55000 ৳

  • Up to 12C High-Rate Discharge
  • 3,000+ Charge Cycles (Up to 5× Longer than VRLA)
  • Wide Operating Temperature: -40°C to +80°C
  • 50% Faster Charging than Lithium-ion Batteries
  • Enhanced Safety with Fire & Explosion Resistant Design
  • Eco-Friendly & Non-Toxic Technology
  • Lower Long-Term Cost with Abundant Sodium Resources
  • Ideal for UPS, Energy Storage & Backup Power Applications
1

Model: UP03S-96HV-Na-G1

01335-087487 Add To Wishlist

Description

Sodium-Ion Battery is a next-generation energy storage solution engineered for high performance, exceptional safety, and long service life. Designed for UPS systems, energy storage, telecom, renewable energy, and industrial backup applications, it delivers ultra-fast charging, high-rate discharge capability, and outstanding performance across extreme temperatures. Utilizing abundant sodium resources, it provides a safer, greener, and more cost-effective alternative to traditional lead-acid and lithium-ion batteries.

  • Super High-Rate Discharge- Supports up to 12C discharge rate, ideal for high-power UPS and backup applications.
  • Ultra-Long Service Life- Up to 3,000 charge/discharge cycles, delivering approximately 5× longer lifespan than conventional VRLA batteries.
  • Excellent Temperature Performance- Operates reliably from -40°C to +80°C. Maintains up to 88% capacity at -20°C, significantly outperforming lead-acid and lithium-ion batteries.
  • Fast Charging Technology- Over 50% faster recharge than conventional lithium-ion batteries thanks to superior ionic conductivity.
  • Enhanced Safety- Advanced cell structure minimizes the risk of smoke, fire, or explosion, even under harsh conditions such as puncture, crushing, overcharge, or over-discharge.
  • Eco-Friendly Energy Storage-Uses abundant, non-toxic sodium resources, reducing environmental impact throughout the battery lifecycle.
  • Sustainable & Cost-Effective- Sodium is far more abundant than lithium, ensuring stable long-term supply and lower production costs.
  • Reliable Power Backup- Perfect for UPS systems, telecom infrastructure, renewable energy storage, industrial equipment, and emergency backup applications.
Specification 3KVA
Capacity 3kVA / 3kW
Input Voltage 208/220/230/240VAC
Voltage Range 100–300VAC
Input Frequency 40–70Hz
Input Power Factor ≥0.99
Input THDi <4% (Linear Load), <5% (Non-linear Load)
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60Hz ±0.1%
Crest Ratio 3:1
Output THDu <3% (Linear Load), <5% (Non-linear Load)
Transfer Time 0ms (Line to Battery), 4ms (Inverter to Bypass, Typical)
Output Power Factor 1.0
Waveform Pure Sine Wave
Efficiency (Line Mode) ≥94.5%
Efficiency (ECO Mode) ≥97%
Battery Energy 614.4Wh
Backup Time (100% Load) 4.5 Minutes
Backup Time (50% Load) 15.0 Minutes
Charging Time <1 Hour (25°C)
Communication Ports RS232, USB, SNMP (Optional), Dry Contact Kit (Optional)
Operating Temperature -20°C to 40°C
Storage Temperature -20°C to 50°C
Relative Humidity 0–95% (Non-condensing)
Noise Level <50dB @ 1 Meter
Operating Altitude Up to 1000m (Without Derating)
Standards EN/IEC 61000, EN/IEC 62040
Product Dimensions (W × H × D) 390 × 190 × 320 mm
Packing Weight 16.3 kg
