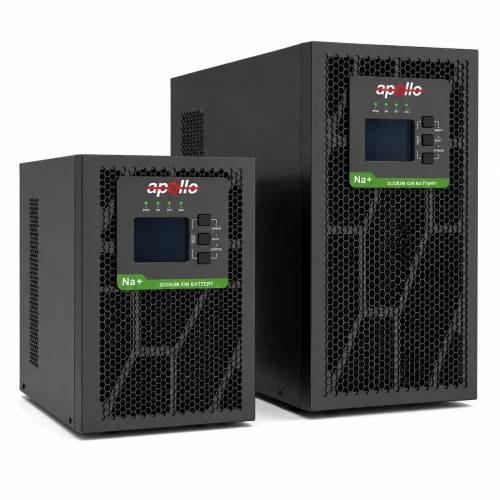

Apollo 6KVA Sodium Online UPS
Apollo 6KVA Sodium Online UPS

Apollo 6KVA Sodium Online UPS

Brand: Apollo

Status: In Stock

MRP: 160,000 ৳

  • High-Rate Discharge up to 12C
  • 3,000+ Charge Cycles (Up to 5× Longer than VRLA)
  • -40°C to +80°C Wide Operating Temperature
  • 50% Faster Charging than Lithium-ion Batteries
  • Fire & Explosion Resistant Safety Design
  • Eco-Friendly & Non-Toxic Technology
  • Lower Lifetime Cost with Abundant Sodium Resources
  • Ideal for UPS, Energy Storage & Backup Power
1

Model: UP06S-192HV-Na-G1

01335-087487 Add To Wishlist

Description

Sodium-Ion Battery delivers high performance, enhanced safety, and long-lasting reliability for UPS, energy storage, telecom, renewable energy, and industrial backup applications. Built with advanced sodium-ion technology, it provides faster charging, superior thermal stability, and lower long-term operating costs compared to conventional battery technologies.

  • Up to 12C High-Rate Discharge for instant high-power backup.
  • 3,000+ Charge Cycles with up to 5× longer life than VRLA batteries.
  • Operates from -40°C to +80°C for reliable performance in extreme temperatures.
  • 50% Faster Charging than conventional lithium-ion batteries.
  • Enhanced Safety Design resistant to fire, smoke, and explosion.
  • Eco-Friendly Sodium Technology using abundant, non-toxic materials.
  • Lower Lifetime Cost with sustainable and cost-effective sodium resources.
  • Ideal for UPS, ESS, Telecom, Renewable Energy & Industrial Backup.
Specification
Capacity 6kVA / 6kW
Input Voltage 208/220/230/240VAC, L+N+PE
Voltage Range 110–300VAC
Input Frequency 40–70Hz
Power Factor >0.99
THDi <3% (Linear Load); <5% (Non-linear Load)
Output Voltage 208/220/230/240VAC, L+N+PE
Voltage Regulation ±1%
Output Frequency 50/60Hz ±0.1%
Crest Ratio 3:1
THDu ≤2% (Linear Load); ≤5% (Non-linear Load)
Transfer Time Line to Battery: 0ms; Inverter to Bypass: 4ms (Typical)
Output Power Factor 1.0
Waveform Pure Sine Wave
Overload (Line Mode) 10 min @102–110%; 1 min @110–130%; 10s @130–150%; <200ms @>150%
Overload (Battery Mode) 10 min @102–110%; 1 min @110–130%; 10s @130–150%; <200ms @>150%
Line Mode Efficiency ≥95%
ECO Mode Efficiency ≥98.5%
Battery Energy 1228.8Wh
Runtime @100% Load 5.0 min
Runtime @50% Load 15.5 min
Charging Time <1 Hour (25°C)
Management Interface RS232 / USB Port / SNMP Card (Optional) / Dry Contact Kit (Optional)
Operating Temperature -20°C to +40°C
Storage Temperature -20°C to +50°C
Relative Humidity 0–95% (Non-condensing)
Noise Level <56dB @1 Meter
Altitude Up to 1000m Without Derating
Standards EN/IEC 61000, EN/IEC 62040
Dimensions (W×H×D) 450 × 190 × 700 mm
Packing Weight 31.4 kg
Carton Size (L×W×H) 555 × 295 × 750 mm
