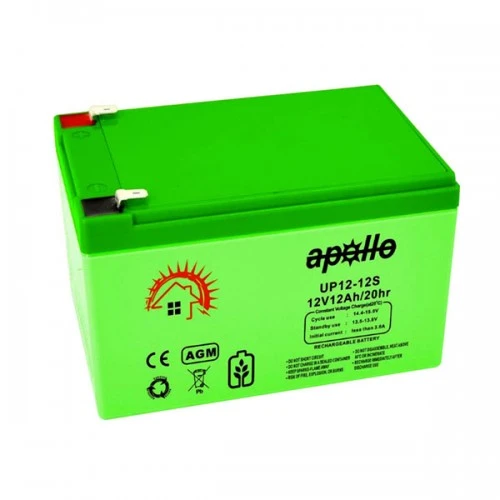

Apollo 12v 12Ah AGM Battery
Apollo 12v 12Ah AGM Battery

Apollo 12v 12Ah AGM Battery

Brand: Apollo

Status: In Stock

  • Model: Apollo 12v 12Ah
  • Nominal Voltage (V): 12V
  • Nominal Capacity: 12Ah
  • Max Discharge Current for 5 seconds: 180A
  • Weight: Approx. 3.30kg
1

Model: 12v 12Ah

Battery Model Nominal Voltage 12V
Rated Capacity (20 Hour rate) 12AH
Cells Per Battery 6
Dimension Length 152mm (5.98 inches)
Width 99mm (3.89 inches)
Height 95mm (3.74 inches)
Total Height 100mm (3.94 inches)
Approx. Weight 3.30kg (7.28lbs) ± 3%
Capacity @ 25°C (77°F) 20 hour rate (0.62A, 10.5V) 12.4Ah
10 hour rate (1.18A, 10.8V) 11.8Ah
5 hour rate (2.20A, 10.5V) 11.0Ah
1 hour rate (7.45A, 9.6V) 7.45Ah
Max. Discharge Current 180A (5 Sec.)
Internal Resistance Full charged at 25°C: Approx. 18mΩ
Capacity affected by Temperature (20 HR) 40°C (104°F) 102%
25°C (77°F) 100%
0°C (32°F) 85%
-15°C 65%
Self Discharge @ 25°C (77°F) After 3 months storage 91%
After 6 months storage 82%
After 12 months storage 64%
Charge Method @ 25°C (77°F) Cycle Use 14.40-14.70V (Initial charging current less than 3.6A)
Float Use 13.50-13.80V

Description

Apollo 12V 12Ah General Purpose VRLA Battery

The Apollo 12V 12Ah GP Series Battery is a reliable and efficient power solution designed with advanced AGM (Absorbent Glass Mat) technology. Built with high-performance plates and a specialized electrolyte formula, this battery delivers superior power output, making it ideal for a wide range of backup power applications.

With a floating design life of up to 5 years at 25°C, the Apollo 12V 12Ah battery meets strict international standards including IEC, BS, JIS, and Eurobat. It is UL (MH62092) and CE certified, ensuring dependable performance and safety.

Key Applications:

  • Emergency Power Systems

  • Communication Equipment

  • Telecommunication Systems

  • Uninterruptible Power Supplies (UPS)

  • Electric Toy Cars and Wheelchairs

  • Power Tools

  • Alarm Systems

  • Marine Equipment

  • Medical Equipment

  • Fire and Security Systems

Designed for general-purpose use, the Apollo 12V 12Ah GP Series battery offers outstanding reliability, maintenance-free operation, and excellent performance in both standby and cyclic use.

Apollo 12V 12Ah General Purpose VRLA Battery – GP Series

The Apollo 12V 12Ah GP Series Battery is expertly designed for reliable, long-lasting performance using advanced AGM (Absorbent Glass Mat) technology. Built with high-performance plates and premium electrolyte, it delivers exceptional power output, making it the perfect solution for a wide range of backup power applications.

With a 5-year floating design life at 25°C and compliance with international standards (IEC, BS, JIS, Eurobat), the Apollo GP Series ensures high reliability and durability. It is also UL (MH62092) and CE certified for added safety assurance.

General Features:

  • Heavy Duty Grid for superior strength

  • Mechanized assembly for consistent quality

  • Non-spillable, maintenance-free design

  • High reliability and operational stability

  • Long service life with low self-discharge rate

  • Sealed construction ensuring safe and clean operation

Construction Details:

  • Positive Plate: Lead dioxide

  • Negative Plate: Lead

  • Electrolyte: Sulfuric acid

  • Separator: High-quality fiberglass

  • Safety Valve: EPDR material

  • Terminal: Durable copper

  • Container: ABS (UL94-HB) or optional Flame Retardant ABS (UL94-V0)

Applications:

  • Emergency Power Systems

  • Communication Equipment

  • Telecommunication Systems

  • Uninterruptible Power Supplies (UPS)

  • Electric Toy Cars and Wheelchairs

  • Power Tools

  • Alarm and Security Systems

  • Marine Equipment

  • Medical Devices

  • Fire and Safety Systems

The Apollo 12V 12Ah GP Series VRLA Battery combines superior construction, dependable performance, and wide applicability—making it the ideal choice for both standby and cyclic uses.
