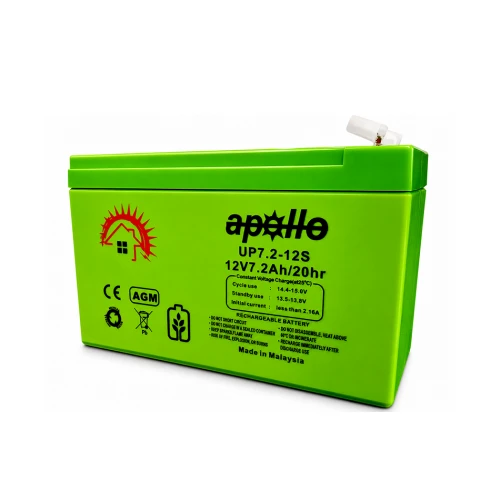

Battery Model
|
Nominal Voltage
|
12V (6 cells per unit)
|
|
Rated capacity (20 Hour rate)
|
7Ah
|
|
Dimension
|
Length
|
Width
|
Height
|
Total Height
|
|
151mm (5.94 inches)
|
65mm (2.56 inches)
|
94mm (3.70 inches)
|
100mm (3.94 inches)
|
|
Approx. Weight
|
2.00kg(4.40 lbs) ± 3%
|
|
Internal Resistance
|
Full charged at 25℃ (77℉): Approx 25.4 (mΩ/25℃± 15%)
|
|
Maximum Charge Current
|
2.10A
|
|
Max. discharge current
|
105A (5Sec.)
|
|
Short-circuit current
|
270A
|
|
Operating Temperature Range
|
Nominal Operating Temperature
|
Discharge
|
Charge
|
Storage
|
|
25℃(77℉)
|
-15℃~ 50℃(5℉~122℉)
|
-15℃~ 40℃(5℉~104℉)
|
-15℃~ 40℃(5℉~104℉)
|
|
Capacity @ 25℃ ( 77℉)
|
20 hour rate(0.36A,10.5V)
|
10 hour rate(0.663A,10.5V)
|
3 hour rate(1.799A,10.2V)
|
1 hour rate(4.40A,9.6V)
|
|
7.20Ah
|
6.63Ah
|
5.40Ah
|
4.40Ah
|
|
Capacity affected by Temp.(20HR)
|
40℃ (104℉)
|
25℃ (77℉)
|
0℃ (32℉)
|
-15℃ (5℉)
|
|
102%
|
100%
|
85%
|
65%
|
|
Charge method at 25℃(77℉)
|
Float Charging Voltage
|
Equalization Charging Voltage
|
Cycle Use Voltage
|
|
13.5~13.8 VDC (-3mV/cell/℃)
|
14.1~14.4 VDC (-4mV/cell/℃)
|
14.4~15.0 VDC (-5mV/cell/℃)
|
