| Model No. |

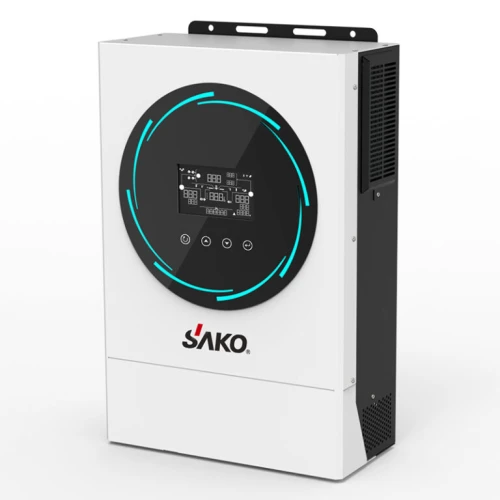

SUNPOLO 6KVA |
| Max. PV Input Power |
6000W |
| Rated AC Output Power |
6000W |
| Grid-Tie Operation |
| Nominal DC Volt / Max DC Voltage |
360VDC / 500VDC |
| Start-up Voltage / Initial Feeding Voltage |
120VDC |
| MPPT Voltage Range |
120-450VDC |
| No. of MPPT Tracker / Max. Input Current |
1 / 27A |
| Nominal Output Volt |
230Vac, Single Phase |
| Output Voltage Range |
184V-265Vac or 195-253V (Selectable) |
| Nominal Output Current |
26.0A |
| Power Factor |
>0.9 |
| Max. Conversion Efficiency (DC/AC) |
96% |
| Off-Grid Operation |
| AC Start-up Voltage / Auto Restart Voltage |
120Vac-140Vac / 180Vac |
| Acceptable Input Voltage Range |
90-280Vac or 170-280Vac |
| Max. AC Input Current |
40A |
| Max DC Voltage |
500VDC |
| MPPT Voltage Range |
120-450VDC |
| No. of MPPT Tracker / Max. Input Current |
1 / 27A |
| Grid Tie Mode |
| Nominal Output Volt |
220Vac / 230Vac / 240Vac, Single Phase |
| Feed-in Voltage Range |
184V-265Vac |
| Max Efficiency DC/AC |
>95% |
| Battery Mode Output (AC) |
| Nominal Output Volt |
220Vac / 230Vac / 240Vac |
| Waveform |
Pure sine wave |
| Efficiency (DC to AC) |
93% |
| Hybrid Operation |
| Nominal DC Volt / Max DC Voltage |
360VDC / 500VDC |
| Start-up Voltage / Initial Feeding Voltage |
120VDC |
| MPPT Voltage Range |
120-450VDC |
| No. of MPPT Tracker / Max. Input Current |
1 / 27A |
| Grid Output Volt |
220Vac / 230Vac / 240Vac, Single Phase |
| Output Voltage Range |
184V-265Vac or 195-253V (Selectable) |
| Nominal Output Current |
26.0A |
| AC Start-up Voltage / Auto Restart Voltage |
120Vac-140Vac / 180Vac |
| Acceptable Input Voltage Range |
90-280Vac or 170-280Vac |
| Max. AC Input Current |
40A |
| Battery Mode Output Volt |
220Vac / 230Vac / 240Vac |
| Waveform |
Pure sine wave |
| Efficiency (DC to AC) |
93% |
| Battery & Charger |
| Battery Type Supported |
- |
| Nominal Battery Voltage |
48Vdc |
| Max Solar Charge Current |
120A |
| Max AC Charge Current |
120A |
| Max Total Charge Current |
120A |
| General Physical |
| Product Dimensions (D x W x H) |
456 x 303 x 148 mm |
| Product Net Weight |
12 kg |
| Packing Dimensions |
535 x 382 x 224 mm, 1PC/CTN |
| Gross Weight |
13.5 kg |
| Parallel Functions |
Yes, optional, max 9 pcs |
| Communication Interface |
RS232, USB, RS485, WIFI |
| Environment |
| Humidity |
5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature |
-10℃ to 50℃ |
| Storage Temperature |
-15℃ to 60℃ |
