| Display Screen |
OC |
BOE MV238FHB-NY0 |
| Panel Type |
IPS |
| Curvature |
Flat |
| Size |
23.8" |
| Panel area |
534.84(W)×306.06(H)mm |
| Active area |
527.04(W)×296.46(H) mm |
| Aspect Ratio |
16:9 |
| Resolution (HxV) |
1920*1080 |
| Refresh rate（Max） |
144HZ |
| Response Time（GTG） |
OD 5MS |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
| Color Support |
16.7M |
| Contrast Ratio)(Typ.) |
1000:1 |
| Backlight Technology |
WLED |
| Brightness(Max.) |
280nit ±20 |
| Brightness Uniformity |
≥75% |
| Surface Treatment |
(Haze 25%)，Hard coating (3H) |
| Color Gamut |
SRGB |
99.00% |
| NTSC |
72.00% |
| Mechanical |
Bezel |
3-sided Bezeless |
| Rear Cover |
Plastic Rear cover |
| Base |
Fixed Metal Stand |
| （Base） |
Tilt |
（+5°,- 15°）±2° |
| Height |
/ |
| Swivel |
/ |
| Pivot Rotation |
/ |
| Disassembly |
/ |
| Vesa function |
Vesa size |
75*75mm |
| Screws |
M4 |
| Dimensions |
(L*W*H）(With stand) |
540.78*136.40*396.62mm |
| （L*W*H）(Without stand) |
540.78*35.05*322.58mm |
| Package |
(L*W*H)(Dimensions) |
603*100*393mm |
| Net weight (including base) |
2.7KG |
| Gross weight |
3.65KG |
| AD Board |
IC |
CVT2525/ HDMI+DP+AUDIO OUT |
| Electronics |

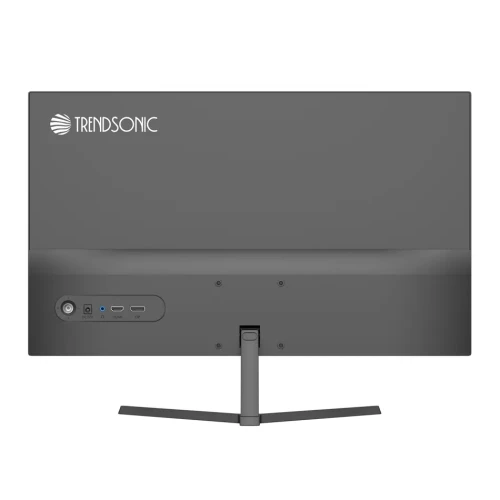

Port Location |
Back |
| (Interface) |
VGA |
/ |
| DVI |
/ |
| HDMI |
1*HDMI 1.4 (1920*1080@144HZ) |
| DP |
1*DP 1.2 (1920*1080@144HZ) |
| Type-C |
/ |
| USB |
/ |
| Audio in |
/ |
| USBHUB |
USB-A |
/ |
| USB-B |
/ |
| (Audio) |
Audio out |
1 |
| Speaker |
YES (4Ω，3W) |
| HDCP |
/ |
| Indicator |
Power on : Blue(LED)
Power saving : Flashing Blue (LED) |
| Atmosphere Light |
/ |
| Key board |
Location |
Back of the fuselage |
| Function |
Five-way remote sensing button |
Software |
Color temperature |
Warm （6500K)/Cool(9300K)/standard(7500K)//User |
| Preset Mode |
6500K |
| Language |
English |
| |
|
| Flicker-free |
Yes |
| HDR |
/ |
| Freesync/AdaptiveSync |
Yes |
| ECO |
Yes |
| G-sync |
|
| E-Book |
Yes |
| MPRT |
Yes |
| OverDriver |
Yes |
| PBP/PIP |
/ |
| AiVision |
/ |
| ShadowBoost |
Yes |
| Six-axis color grading |
/ |
| Refresh rate display |
/ |
| Timer |
/ |
| TYPE-C screen projection function |
/ |
| Hawk eye mode |
/ |
| Ai-Crosshair |
/ |
| Custom shortcut keys |
/ |
| Power |
Type |
Wall Plug Adapter European |
| Input Voltage |
12V |
| Input Electric Current |
2.5A |
| Power Consumption |
On |
30W(28.6W) |
| Stand by(max)） |
0.5W |
| USBC/Thunder bolt3) |
/ |
| Accessories |
Cantron |
Material |
Carton Box |
| Carry |
Handle |
| Instructions |
Customize |
| Color Report |
/ |
| Energy Sticker |
/ |
| Warranty Card/User Manual |
1 |
| Screws |
3 |
| Cables |
Adapter |
YES DC 12V-2.5A |
| Power Cable |
No |
| HDMI Cable |
1.5M |
| DP Cable |
No |
| Type-C Cable |
No |
| USB Cable |
No |
| Environmental Parameters |
Storage Temperature |
-20°C~60°C |
| OperatingTemperature |
0°C ~ +40°C |
| Humidity Range Operating |
20% ~ 90% RH |
| Altitude |
≤2000m |
| Load Data |
(WithoutPallet) |
20GP |
1250 |
| 40GP |
2500 |
| 40HQ |
2800 |
| (WithPallet) |
20GP |
630 |
| 40GP |
1400 |
| 40HQ |
1520 |
